PCS3000

Delta Power Conditioning System (PCS) is a bi-directional energy storage inverter for grid applications including power backup, peak shaving, PV self-consumption, PV smoothing, etc.

Delta PCS3000 provides power capacity from 3110 to 4150 kVA with 98.4% efficiency. Featuring high availability and adaptability, the PCS is battery technology independent and can control energy storage system exactly when it is required.

제품 소개

특징과 장점

Efficient and Precise Power Control

Power capacity: 3110-4150 kVA
AC voltage: 600 Vac
Peak efficiency: 98.4%

Flexible System Configuration

Modular design realizes scalability and availability
Battery independence provide high adaptability for energy storage

Designed for Energy Storage Applications

Advanced P/Q, Frequency/Voltage, and VSG control
Utility-grade protection designed for harsh environment
AC-coupled storage applications
Automatic voltage and frequency regulation
Active and reactive power compensation
Anti-Islanding detection, islanding control operation

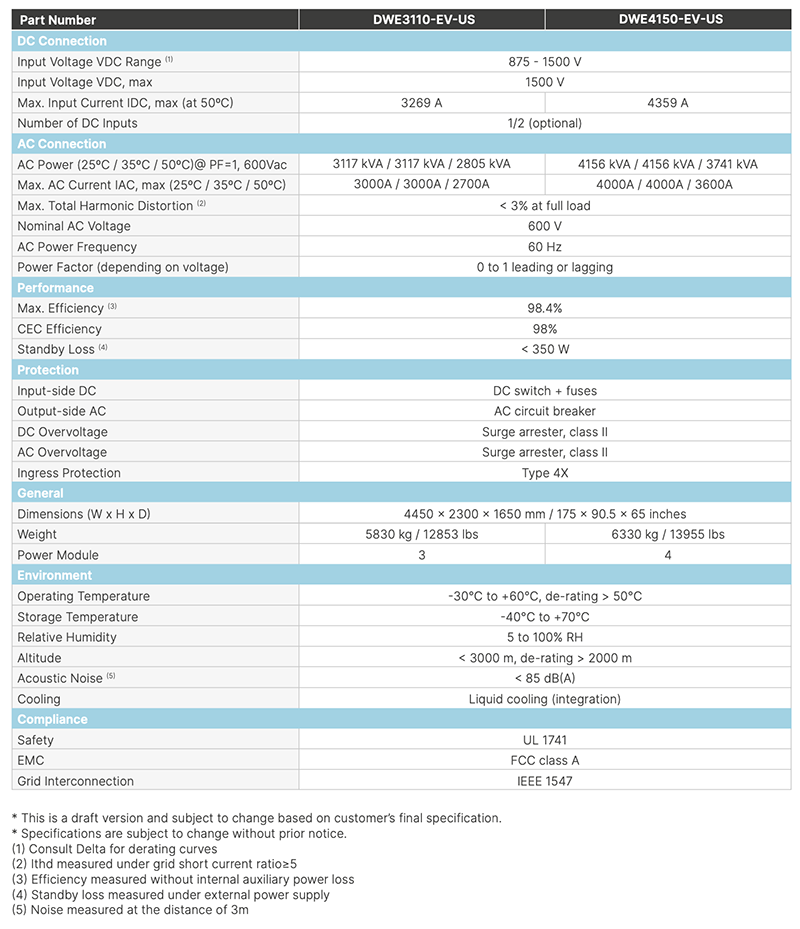

명세서

다운로드

PCS3000 Leaflet
